Why we shouldn’t patch it up: how labels and patches on canvas tears distort paintings

If you ever have a stroke of bad luck and accidentally punch or tear your canvas painting, don’t patch it up. Holes and tears in stretched canvases can happen and patches can seem like an easy fix but are not recommended. Likewise, adhering labels with information about the painting on the reverse is generally a good practice, but the label should not be placed on the canvas itself.

Distortions

The reason why patches and labels are simply not a good idea is planar deformation. Planar simply means a flat surface or plane and translated to canvas paintings planar deformations refers to distortions such as bulges or plateaus. These are a common consequence of gluing patches or labels to the back of canvases. Their outlines can become visible as distortions, on the front of the painting and thus disturb the aesthetic of a piece.

Different Adhesives:

Patches are never a great solution, but one of the worst choices for a glue would be animal glues such as hide glue or fish glue. Animal glues are greatly appreciated for their tightening effect when used as a size in canvas preparation, but this effect exacerbates planar canvas deformations when used for patches (Image 1). Additionally, animal glues are extremely hygroscopic and will cause the canvas fibers to swell and shrink as the temperature and humidity levels rise and fall, thus adding to the problem. Compared to our test with animal glue (rabbit skin glue), acrylics (Soft Gel Gloss) caused less planar deformation (Image 2), and our test with microcrystalline wax also caused less deformation than the animal glue (Image 3).

Patch adhered with Rabbit Skin Glue on cotton canvas, 2 weeks old.

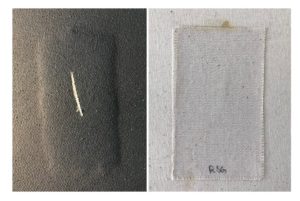

Image 1: Patch adhered with Rabbit Skin Glue on cotton canvas, 2 weeks old. The left shows the front of the canvas (coated with Black Gesso) in racking light, which makes the deformations caused by the patch clearly visible. The right shows the patch on the reverse in regular day light.

Patch, adhered with Soft Gel gloss on cotton canvas, 1 year old.

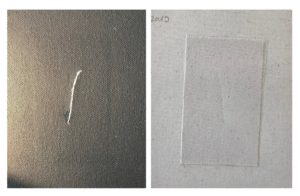

Image 2: Patch adhered with Soft Gel Gloss on cotton canvas, 1 year old. The left shows the front of the gessoed canvas in raking light, while the right shows the patch on the reverse in day light.

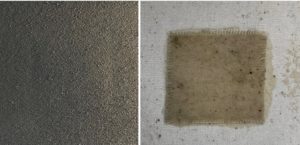

Image 3: Patch adhered with Lascaux Adhesive Wax (microcrystalline wax and polyterpene resin) to a cotton canvas, coated with Black Gesso, 2 weeks old. The left shows the front of the gessoed canvas in raking light, while the right shows the patch on the reverse in day light.

Priming and Paint Layers:

Distortions can occur regardless of the type of priming and paint layers. We tested cotton canvas prepared with acrylic gesso and painted with a number of layers of Fluid Acrylics (Image 4), as well as a linen canvas prepared traditionally with rabbit skin glue size and Williamsburg Oil Ground (Images 5 & 6). Between the two patches on the linen canvas the one adhered with animal glue caused again, greater planar deformations, as can be seen in the raking light images.

RSG on painted cotton canvas 2 weeks old

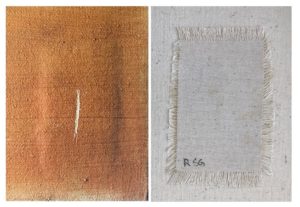

Image 4: Patch adhered with Rabbit Skin Glue to a painted cotton canvas, 2 weeks old. The canvas is painted on the front with 10 coats of acrylic paint and medium. The left shows again the front in raking light and the right image shows the patch on the reverse in day light.

RSG on TiO2 linen canvas 2 weeks old

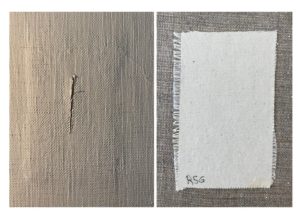

Image 5: Patch adhered with Rabbit Skin Glue to a  linen canvas, primed with Titanium White Oil Ground, 2 weeks old.

Patch adhered with Soft Gel Glosss on linen canvas, primed with Titanium White Oil Ground, 2 weeks old.

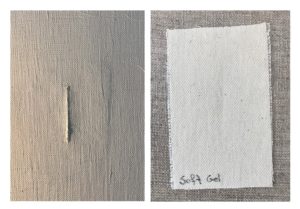

Image 6: Patch adhered with Soft Gel Gloss on linen canvas, primed with Titanium White Oil Ground, 2 weeks old.

















Synthetic Canvas vs Natural Fiber Canvas:

Patches on synthetic canvas can distort just as much as on natural fiber canvases. In our tests we applied two patches to a polyester canvas. For one patch we used Rabbit Skin Glue (Image 7) and for the other patch, Soft Gel Gloss (Image 8). The patch adhered with the Soft Gel caused significantly less deformations.

Image 8: Patch adhered with Soft Gel Gloss on polyester canvas, 2 weeks old.

Image 7: Rabbit Skin Glue on polyester canvas, 2 weeks old.



Feathering Out Edges:

Feathering out the edges of a patch theoretically can help to reduce distortions, but I have seen many patches on old paintings with significant distortions, despite feathered edges. The idea is to create a gradient transition of stresses from the patch outwards into the rest of the painting, so that the outlines of the patch would not transfer to the front. However, if the patches consist of thick and stiff enough materials and the adhesive is applied thickly, feathering out edges does not always prevent planar deformations, as can be seen in Image 9 and in Image 4.

old patch on oil painting on linen canvas

Image 9: Old patch adhered with beeswax on a late 19th century oil painting on linen canvas.

All or Nothing:

Nothing should be glued to the back of a painting, unless it covers the entire surface, including the space underneath the stretcher bars. Sparing out the space underneath the stretcher bars can lead to distortions just like those caused by patches (Image 10).

A huge patch on oil painting on linen canvas.

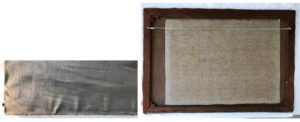

Image 10: A huge patch on an oil painting on linen canvas , causing planar deformation on the front of the painting. The left shows a detail of the lower left corner of this early 20th century painting.

Expect Updates on Our Tests:

Even if deformations are not noticeable right away, they might develop over time. We are planning on reassessing and photographing the same canvases again in one year’s time and posting the results in this article.

Recommendations

  • Information labels on the reverse of a painting can give valuable information to future collectors or conservators. These labels could list not only the dates of when the painting was started and completed, but also about the materials used and their layering, especially final varnishes. These labels can be attached to the reverse of stretcher bars or the information can be written with permanent and lightfast pens directly on stretcher bars, but not on the canvas itself. Writing directly onto the reverse of a canvas is not something we recommend, as the ink from markers or pens might migrate through to the front over time and the pointed pressure of a pencil could cause impact damage.
  • Use backing boards to significantly reduce the risks of punch holes and tears in your canvas paintings. Informative labels can also be placed on backing boards instead of stretcher bars. You can find more information on backing boards in our article Backing-boards for canvas paintings.
  • In case you have a painting which you painted yourself and consider treating it yourself for a tear or a hole, feel free to reach out to our Material and Application Department for tailored advice in your situation.
  • If you have a painting made by somebody else or the affected painting is your own work but is sold already, our best advice is to find a Conservator. Painting Conservators are trained to do tear mending and placing inlays, which are a much safer way to treat such damages. Conservators are also better equipped to remove patches and correct distortions, or find other appropriate treatments for your painting, although not all patches are reversible. You can use the website of the AIC to find a local conservator.

As always, if you have any concerns or questions, feel free to contact us through phone or email.
